Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TOPWILL
  • Model Number: TP806MJID11 video intercom system
  • Camera: color, Color
  • Power: 110V-240V, AC110-220V
  • LCD screen: 7inch
  • material: metal
  • Type: video intercom system
  • Connectivity: Wired
  • Outdoor: Night vision,rainproof
  • Power Supply: EU/US/AU/UK Plug Optional
  • IR: IR LED lights
  • Power of outdoor unit: DC15V

Packaging & Delivery

Packaging Details color box
video intercom system
Delivery Time within 3-10 days video intercom system

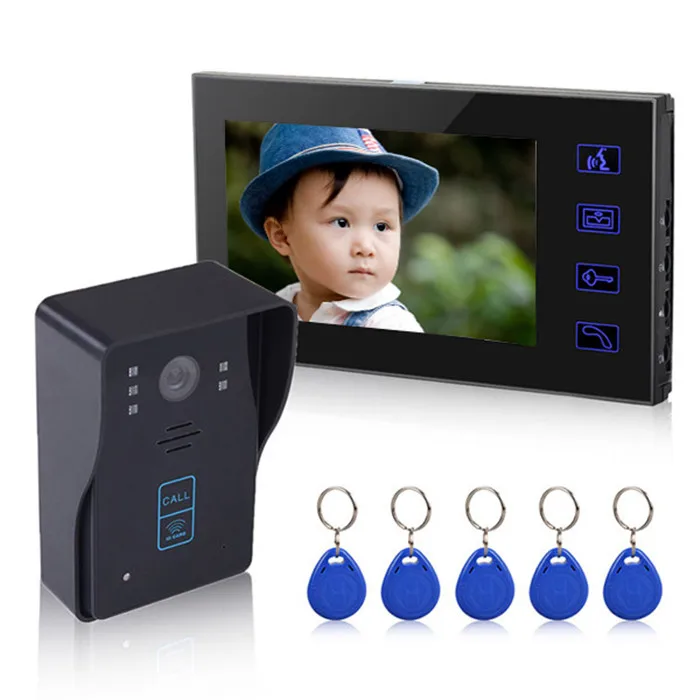

 7 inch color TFT video door intercom system, with IR Camera








The security system product you are watching now is the latest popular, fashional, goodlooking and convenient door phone kit with 1-camera and 1-monitor which has a large screen and provides a beautiful vision and safe feeling with a very simple installation and usage. It adopts advanced technology and the latest computer chips which highly improves the stability and durability of the system. The design of ultrathin wall mounting will also make this product light and convenient. As to the applications, it can be widely used in apartments, villas, hotels and offices etc.
The functions mainly include hands-free monitor, two-way intercom, high-definition visibility, lock control, infrared night-vision outdoor station, adjustable intercom volume and screen color of the product. More details are shown as follow.
Furthermore, in order to satisfy most of the customers, a complete doorphone system with 5 RFID key fobs, a push release button switch have been launched. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods, and the details about how to open the door is shown you as follow.


Features:

7" color TFT LCD with sensitivity touch panel. No radiation, low power consumption

Infrared LEDs for night vision, more convenient.

Rainproof cover design, antioxidative Outdoor Unit with piano bakes lacquer panel.

16 kinds of rings for selection

The Volume, brightness and contrast can be adjusted

Piano bakes lacquer panel design on indoor unit, more fashionable and luxury

Hands free intercom, one-button touch makes perfect experience.

Comes with 5 RFID key fobs,a push release button switch

Support one camera with several monitors, if you need more monitors; please feel free to contact us before bidding.

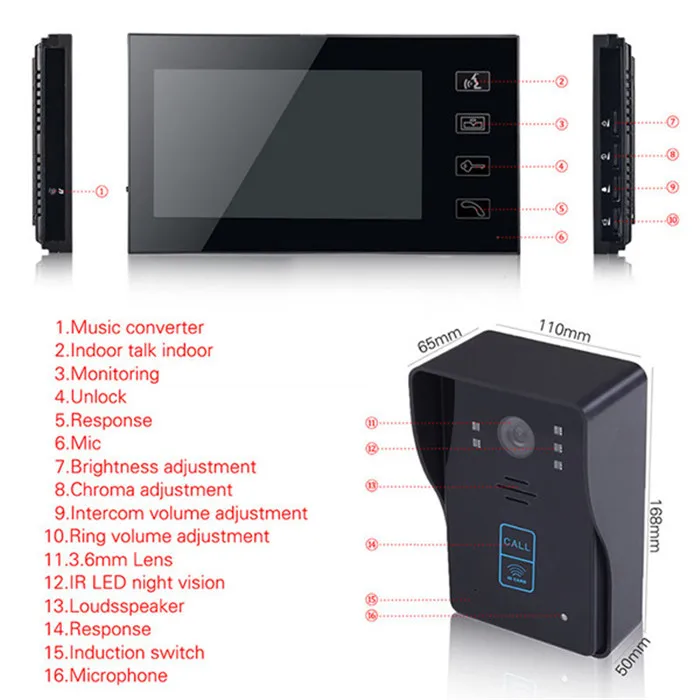

Detail shows:

A door phone intercom adopt advanced touch technology, the full touch panel brings more sensitive touch experience.

BThe ultrathin LCD display feels light and convenient. Furthermore, the piano bakes lacquer panel also looks more fashionable, elegant and luxury.

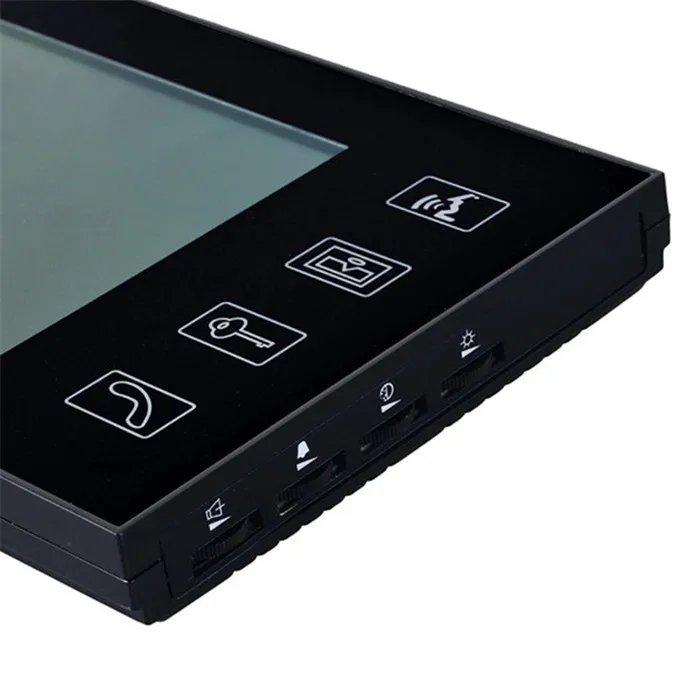

CThe Volume, brightness and chroma can be adjusted to meet your need. Besides, there are 16 kinds of music rings for selection.

DThe built-in infrared LEDs make it available to see the visitor outside at night or at dark. It benefits more for the home security.

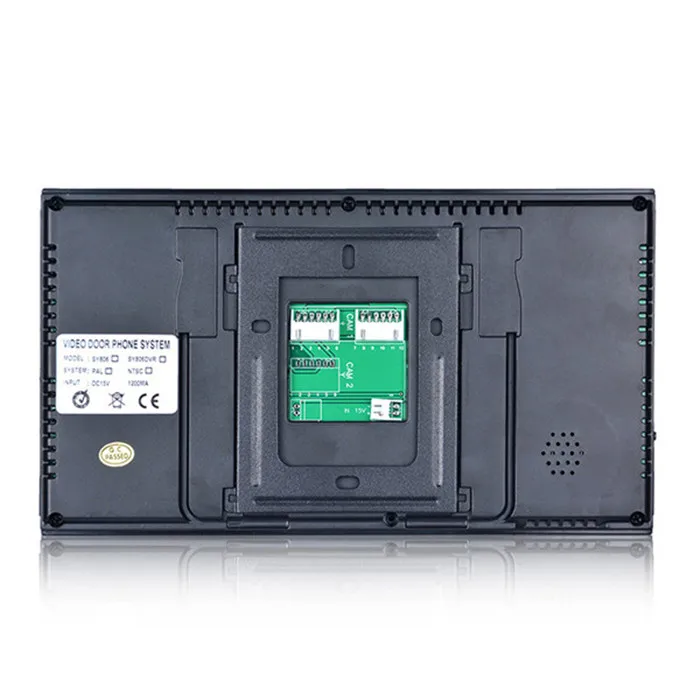

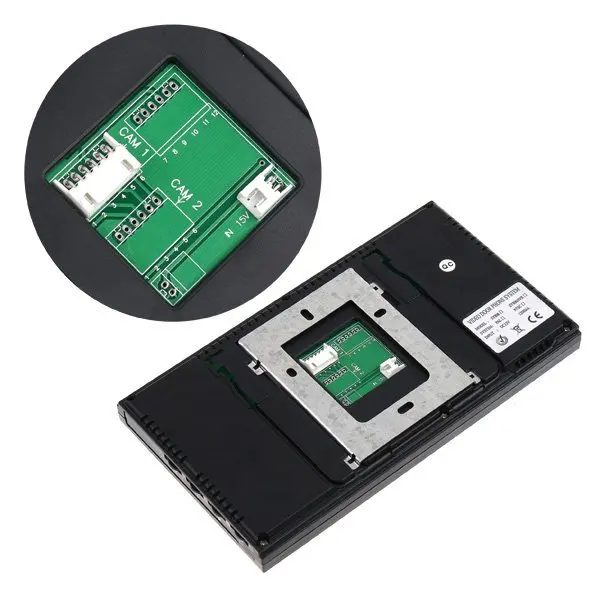

EThe back-hang design also is one of the advantages, which make the monitor be installed more easily and convenient. It can be installed anywhere you want.

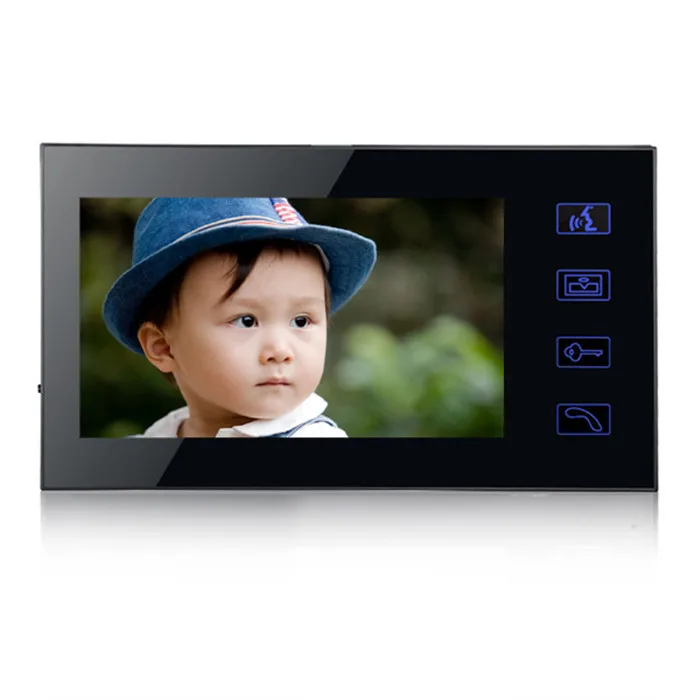

FThe display image in the monitor is very clear for viewing, which will definitely meet the general use.

GThe outdoor camera is attached with a rain proof cover to prevent the water. You needn't worry about the outdoor camera would be wet in the rainy day.

Note: This item comes with 5 RFID cards (including added card and deleted card). If you need more RFID card, you can add the quantity of the RFID card as you like. The function of the added card and delete card (the added/delete card can not unlock the door lock)

Added card

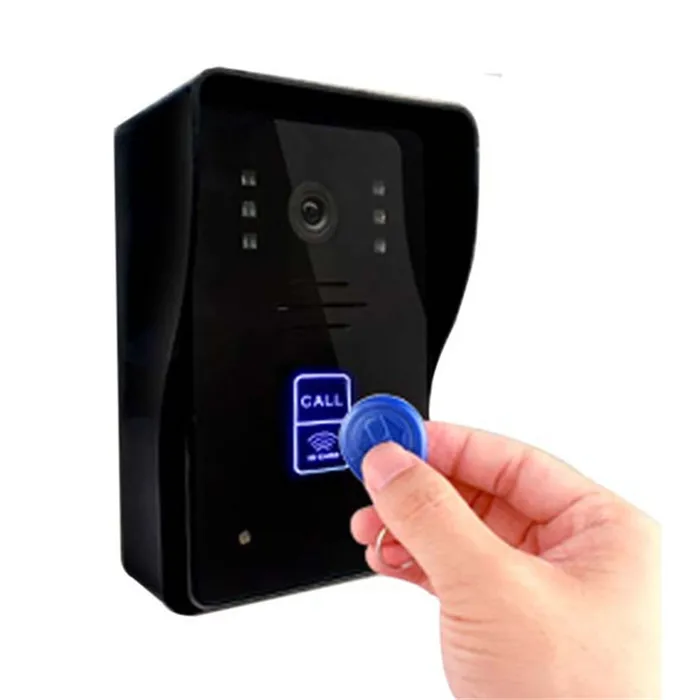

This card can authorize the ordinary RFID card to open the E-lock and the operations are shown as follow: Brushing the Added card on the camera-then brushing the ordinary RFID card- Brushing the Added card on the camera again at last. At this time, the ordinary RFID card can be used for opening the door lock.

Deleted card
This card can be used for canceling the authorization of opening the door lock, and the operations are shown as follow: Brushing the deleted card on the camera-then brushing the ordinary RFID card on the camera- Brushing the deleted card on the camera again at last. At this time, the ordinary RFID card is not available to open the door lock.

Outdoor Camera

Model No.

MJID

Night Vision

IR Light, visible within 5 meters

Vision Angle

92 Wide Angle

Resolution

> 420 TV Line

Plus Control

Automatically

Power Consumption

Standby: 0.1W; Working: 4W

Working temperature

-10 degree  ~ +55 degree

Installation

Wall mounted

Size

168(L)*110(W)*65(H)mm

Net Weight

310g

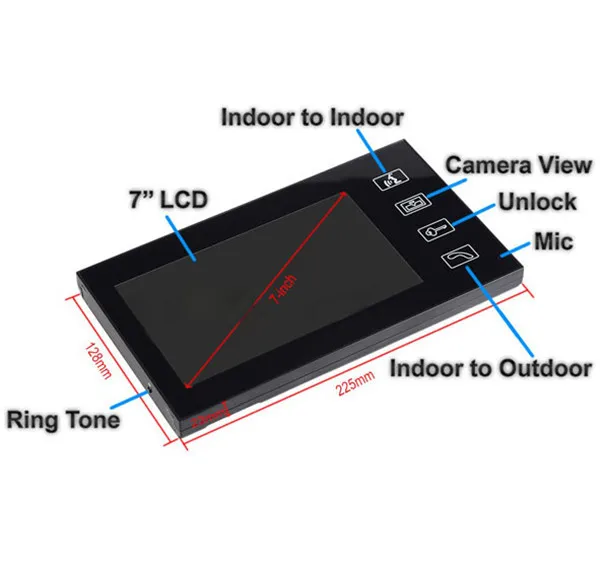

Indoor Monitor

Model No.

SY806

Screen

7'' wide angle TFT LCD, 16:9 Display

Resolution

480*RGB*234

Power input

AC100V-240V 50Hz-60Hz

Power output

DC 15V

Current output

1200mAh

Delay Calling time

120s ±10%

Delay Monitoring time

40s ±10%

Valid Distance

80M (4x0.65 mm2)

Power Consumption

Standby: 0.5W; Working: 8W

Transmitting Distance of Image

about 200m

Viewing Angle

65

Adapter Input

AC100~ 240V, 50/60Hz

Adapter Output

DC 15V

Working Temperature

-40 degree  ~ +70 degree

Standby Temperature

-20 degree  ~ +60 degree

Installation

Wall mounted/lift on desk

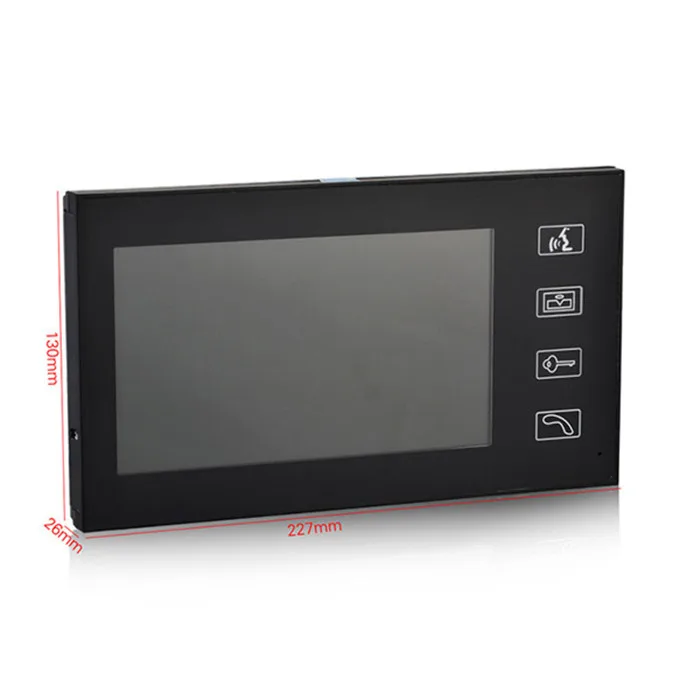

Size

225(L)*128(W)*23(H)mm

Net Weight

460g

Electric Drop Bolt Lock

Power supply

DC 12V/1A

Size of lock body

8.07" x 1.38" x 1.65" in (L x W x H)

Cylinder panel size

3.54" x 0.98" x 0.08" in (L x W x H)

Cylinder Size

0.67" in length, 0.63" in diameter

Live out

N.C (0.5A) connection point inside

Power consumption

Start: 0.8A,Normal: 0.09A

Weight

800G

Safety measures

Unlock when not energized

Reverse connection of negative and positive poles of battery
